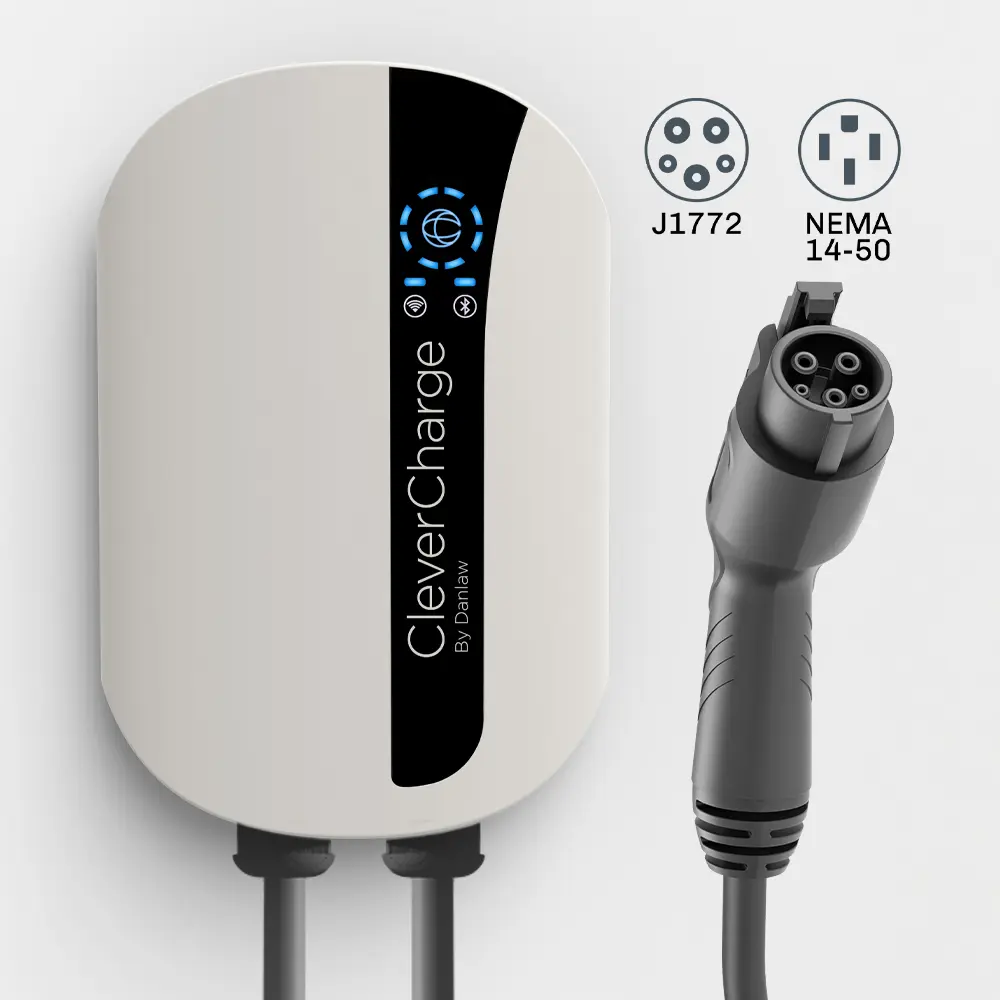

J1772 NEMA 14-50
Manufacturer: Danlaw, Inc.
Product Description:

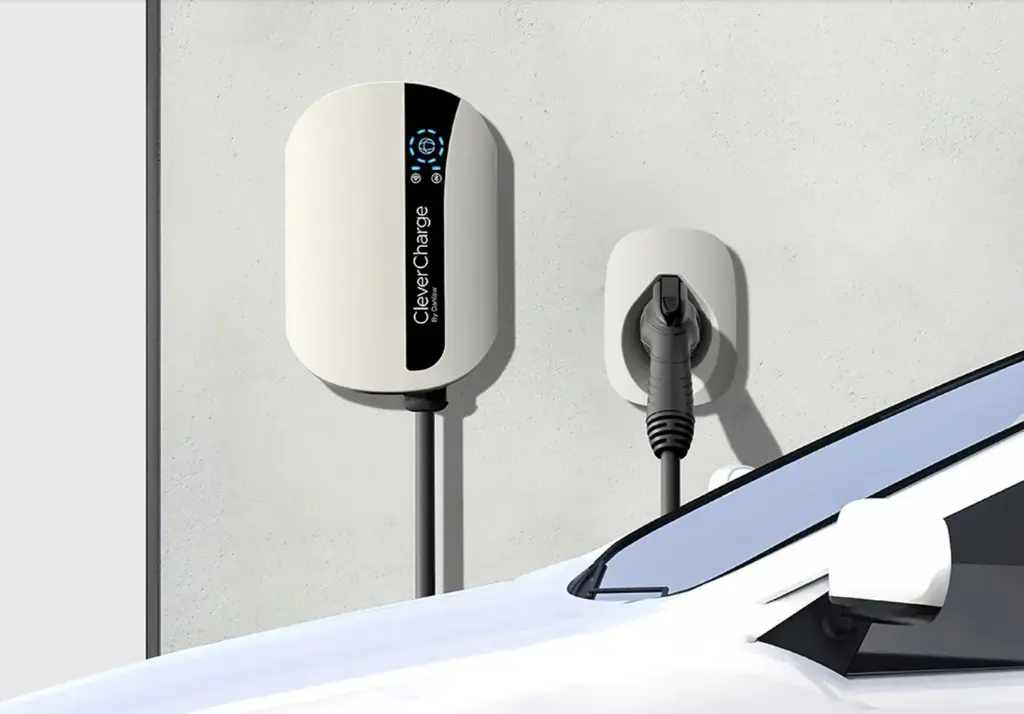

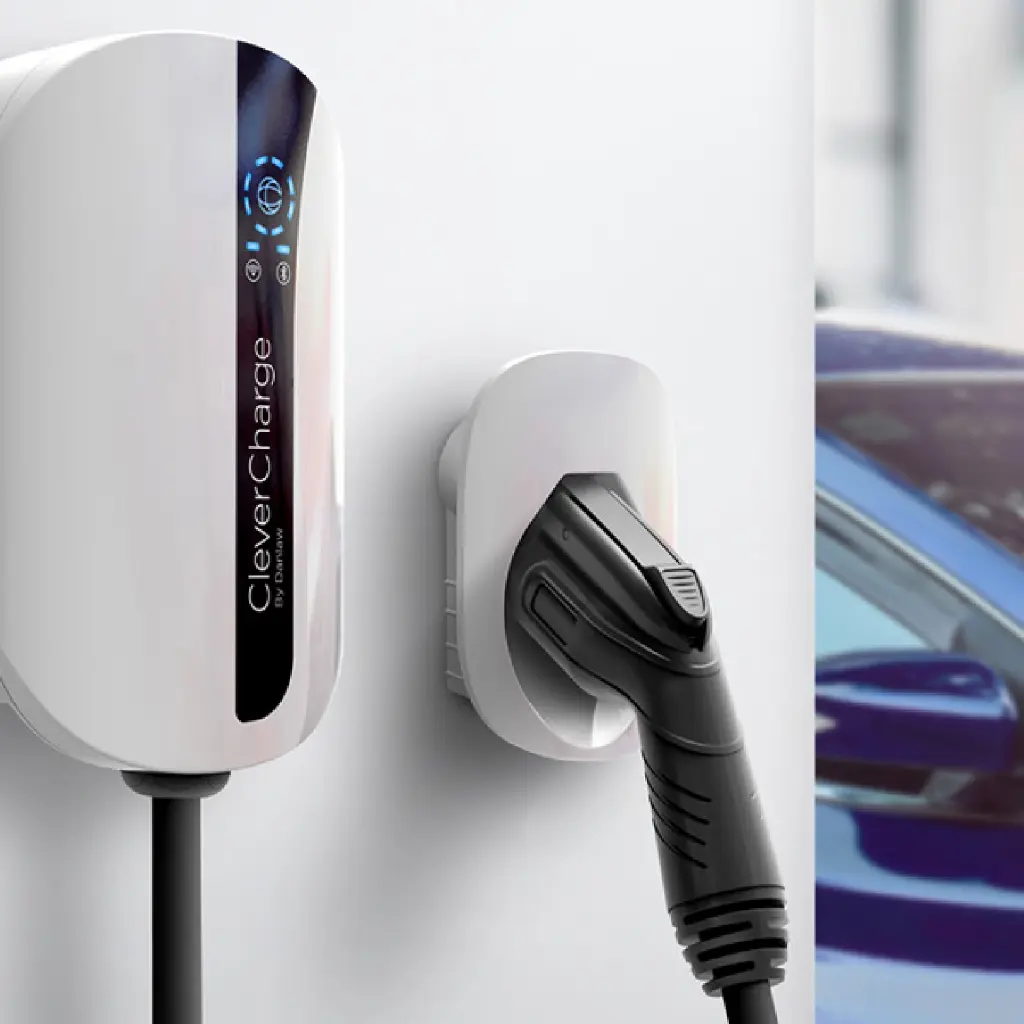

Experience the future of home charging. Charge faster, smarter, and easier at home with CleverCharge. Our compact yet powerful charger works with any electric car* and is easy to install. Control your charging effortlessly with the CleverCharge app via WiFi or Bluetooth.
Key Points:
- Charging power up to 40Amp (9.6kW)
- Charging speeds up to 38 Miles of range per Hour
- Works with all EVs
- Indoor and outdoor installation
- Wi-Fi and Bluetooth connectivity
- Easy installation
Certifications:
- FCC ID: 2AC7Z-ESPC6WROOMU
- Energy Star: 3943500
Warranty: 3-Year Manufacturer's

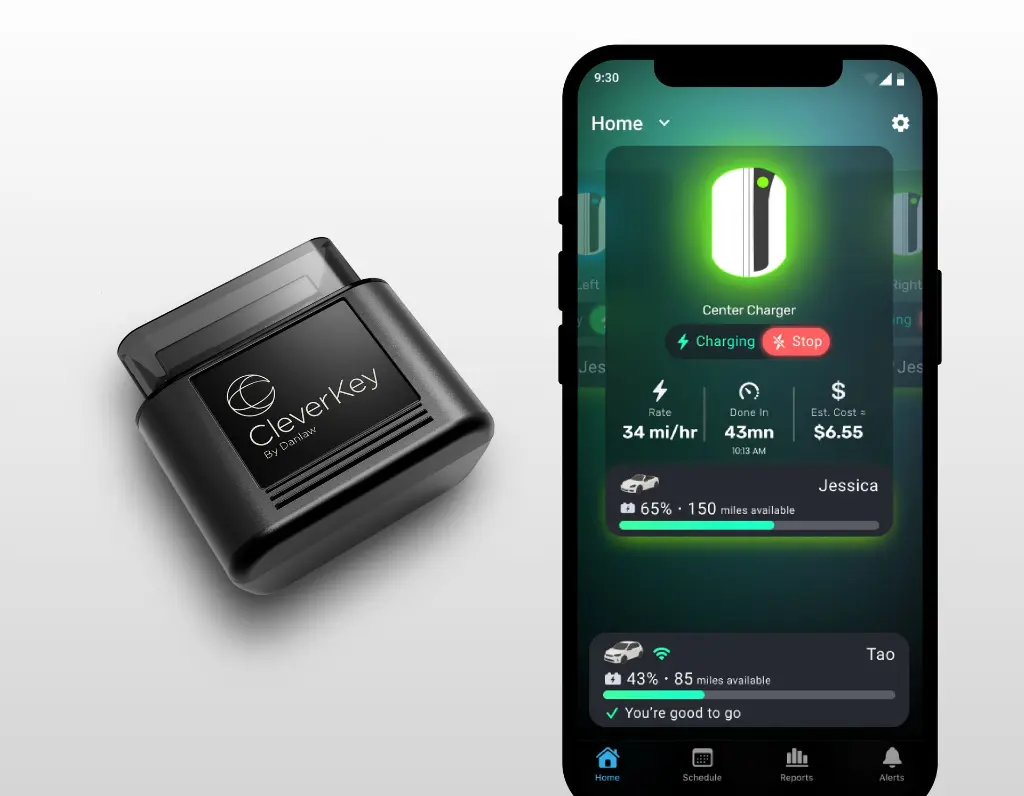

What's in the Box: CleverCharge Home Charger, Patented CleverKey Vehicle Interface (OBDII), EV Gun Holster, Mounting Hardware, Quick Start Guide, 25 ft Cable
| Connector type | Type 1 (J1772)* |
| Maximum current | 40Amps | 9.6kW |
| Color | White |
| Input Voltage | NEMA 14-50 or Hardwired |
| Dimensions | 305mm x 203mm x 81mm ( 12"x8"x3 3/16") |
| Charger status information | CleverCharge Mobile App |
| Connectivity | Bluetooth/Wi-Fi |
| Cable length | 25' |
| Certifications | Energy Star | Electrical Safety Certification UL 2594 UL 2231 |
| EMC Compliance | FCC Part 15 Class B |
| Environmental / Enclosure Rating | Type 4 per UL 50E | CAN ICES-003B / NMB-003B |
| Rated Voltage AC +/-10% | 240/208V (Level 2) |
- EV Charger
- 25-Foot Cable
- Connector (SAE J1772 Type 1)
- EV Gun Holster Accessory
- Mounting Hardware
- NEMA 14/50 Wall Plug
- Quick Start Guide
If you already have a NEMA 14-50 outlet installed near your parking space, you are already halfway there. The CleverCharge 40A is plug and play ready with no additional installation required. Don't have a NEMA 14-50? No problem. Consult with a licensed electrician for a quick and easy installation.
